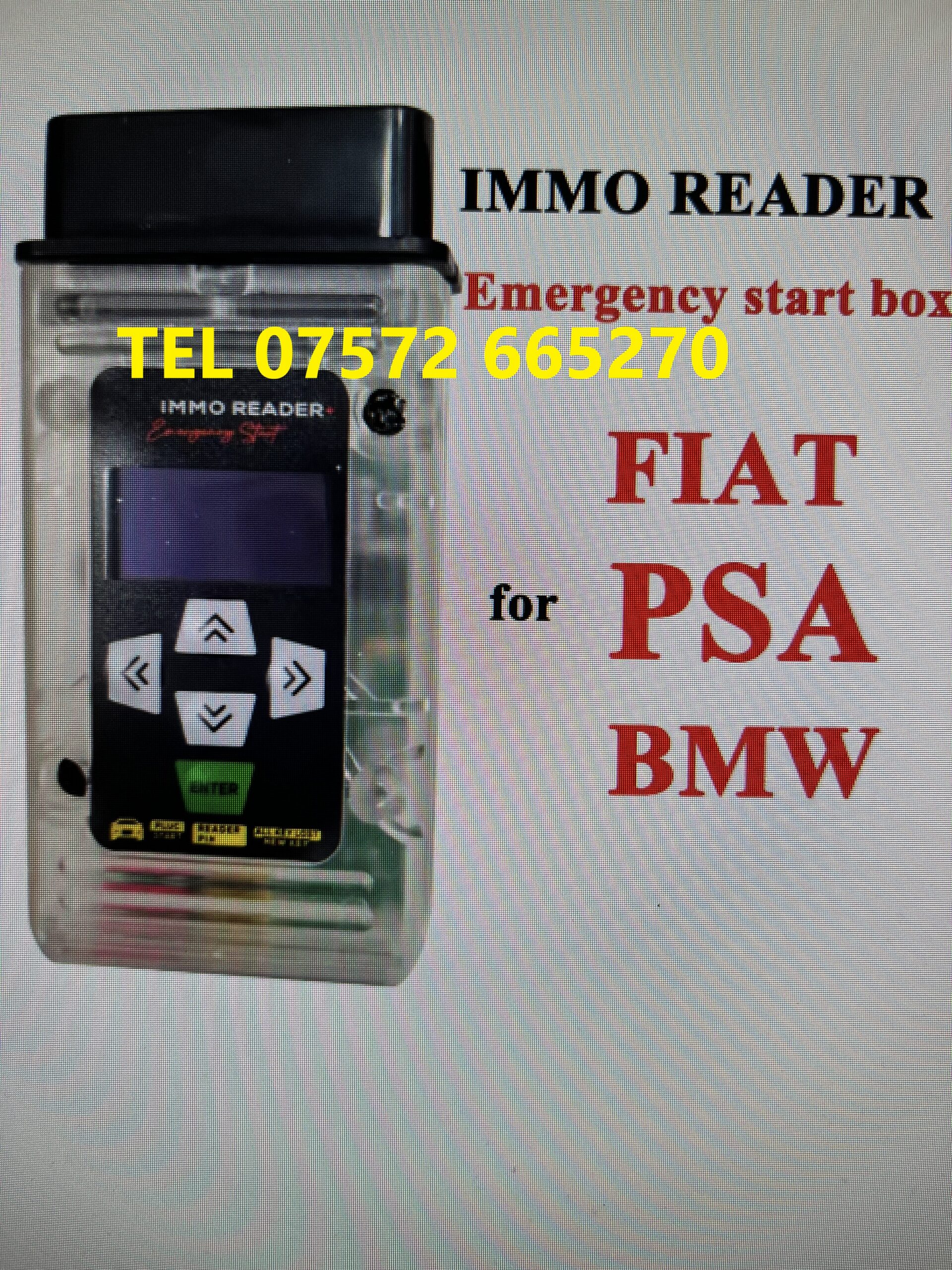

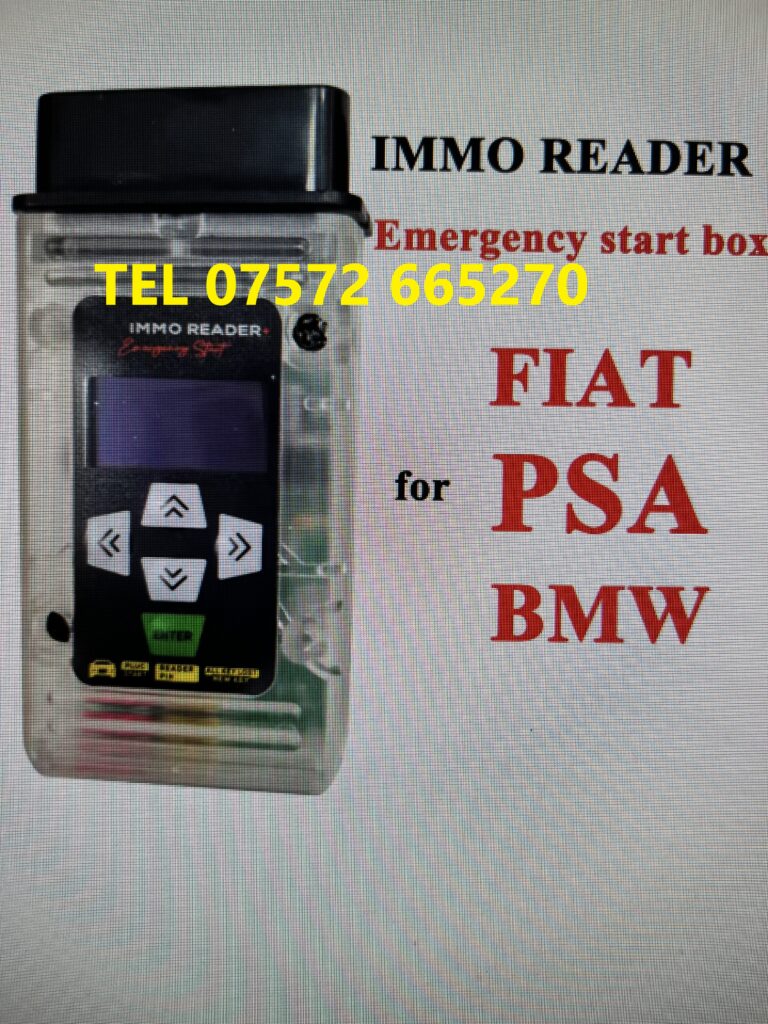

3 IN 1 Emergency Start Bypass for Fiat & PSA Immo Reader for Fiat 500 etc 2010-2020

The product can work when connected to the car’s OBD2 port. It does not need to be connected to a computer.

This product cannot be upgraded. Upgrade is not supported.

Note: Device is sold only for official use. If you use it for any illegal
purposes, this is your own responsibility!

for PSA IMMO READER EMERGENCY START

• Reading PIN code with a working key

• All Key Lost

• New Key

• Emergency Start

• Plug and Play

For FIAT EMERGENCY START:

for FIAT Bypass – Emergency Starting Device Emulator will only work on vehicles equipped with a mechanical key. It does not work with Smart Remote key. You need to plug the device directly into the OBD2 socket to use it.

Car has to be equipped with mechanical key.

Car has to be equipped with original parts.

The device will work only in case of a lost key. ALL KEYS LOST

If the car is equipped with an SGW Module (some models starting from 2017 year),

you need to use 2018+ FCA Bypass Adapter in order to bypass Security Gateway Module.

How to use:

Insert the device into OBD plug.

(In some models produced from 2017 year, you have to use 2018+ FCA Security Gateway Module Bypass Adapter)When you insert the product to the car the red led will stay on (power).

Green led (code) will start blinking fast.

Turn the ignition ON – the green LED(code) will keep still. (successfully completed)

Start the car.

Note: If the green LED (code) keeps blinking fast after turning the ignition ON,

take the key out, wait 30 seconds and turn the ignition ON again.

Sometimes the procedure needs to be repeated again.

For Fiat Emergency Start:

Supported cars (Europe)

•for Fiat 500 All 2007-2020
•for Fiat 500 Abarth All 2008-2020
•for Fiat 500L All 2007-2020
•for Fiat 500X 1.3 MultiJet 2014-2019
•NEW for Fiat Doblo All 2011-2020
•for Fiat Ducato All 2010-2020
•NEW for Fiat Fiorino All 2011-2020
•for Fiat Grande Punto All 2007-2020
•for Fiat Grande Punto Abarth All 2012-2020
•for Fiat Panda All 2012-2020
•for Fiat Qubo All 2008-2020
•for Fiat Tipo 1.3 Mul-tJet 2014-2017
•for Alfa Romeo Mito All 2008-2020
•for Alfa Romeo Giulietta All 2012-2020
•for Citroen NEW for Citroen Jumper All 2012-2020
•for Ford Ka All 2008-2019
•for Iveco All models All 2010-2017 With Del-phi BCM
•for Jeep Renegade 1.3 for MultiJet 2017-2019
•for Lancia for Ypsilon All 2012-2020
•for Peugeott for Boxer All 2010-2020

Supported cars (South America)

•for Fiat 500 All 2014-2020

•for Fiat Fiorino All 2013-2021
•for Fiat Idea All 2010-2017
•for Fiat Linea 1.4 T-Jet 2008-2018
•for Fiat Palio All 2011-2017
•for Fiat Punto All 2007-2011
•for Fiat Punto EVO All 2011-2017
•for Fiat Toro Diesel 2015
•for Fiat Qubo Diesel 2008-2020
•for Ram ProMaster Rapid Diesel 2013-2018
•for Ram V700 Rapid Diesel 2012-2016

For BSI SUPPORT LIST:

•for PSA BSI CONTIN-ENTAL SC667050+95256 CAN BSI-Q0x-00
•for PSA BSI SIEMENS / CONTIN-ENTAL 1L00M+95128 / 95256 CAN BSI-S0x-00
•for PSA BSI SIEMENS / CONTIN-ENTAL 76F0018+95160 KLINE BSI-F0x-00/BSI-E0X-00
•for PSA BSI VALEO 4L00M+95128/25128 CAN (BSI2004-P0X-00)
•for PSA BSI VALEO 2M48H+24C128 CAN (BSIEV-X0X-00)
•for PSA BSI VALEO SC667152+95256 CAN BSI-N0x-00
•for PSA BSI JC easyCAN4+29LV400BB+95128 CAN (BSI2004-H0X)
•for PSA BSI JC easyCAN4F1M32+95128 CAN (BSI04EV-K0X)

For PSA IMMO READER Support Car List:

•for Peugeot 208 1.5HDI 2018+
•for Peugeot 3008 1.6THP 2016+
•for Peugeot 3008 1.5HDI 2019+
•for Peugeot 3008 2.0Blue HDI 2016+
•for Peugeot 308 1.6THP 2017+
•for Peugeot 308 1.5HDI 2018+
•for Peugeot 308 2.0Blue HDI 2017+
•for Peugeot 5008 1.6THP 2017+
•for Peugeot 5008 1.5HDI 2017+
•for Peugeot 5008 2.0Blue HDI 2017+
•for Peugeot 508 1.6THP 2018+
•for Peugeot 508 2.0HDI 2020+
•for Peugeot 6008 2.0Blue HDI 2017+
•for Peugeot Expert 1.5HDI 2019+
•for Peugeot Partner 1.5HDI 2018+
•for Citroen Berlingo 1.5HDI 2018+
•for Citroen C4 1.5HDI 2018+
•for Citroen C5 1.6THP 2018+
•for Citroen C5 2.0Blue HDI 2018+
•for Citroen DS4 2.0Blue HDI 2016+
•for Citroen DS5 2.0Blue HDI 2015+

For BMW Force Ignition Tool

B-M-W FORCE TOOL IS USED TO TURN ON CIRCUIT TO DISABLE ALARM TO ACCESS TRUNK. IT CAN HELP YOU EXTRACT ISN BMW FORCE TOOL is the first tool to work with CAS4 FEM BDC and NEW “G” Systems. NO COMPUTER REQUIRED BMW FORCE TOOL works on all BMW based Systems Including Rolls Royce. Able to turn on circuit 15 safely works on B-M-W electric Vehicles also.

This emergency start bypass is engineered for ease of use, with a plug-and-play design that eliminates the need for complex programming or installation. Its compatibility extends to a wide range of vehicles, including Fiat and PSA models, ensuring that you have the right tool for the job at hand. The compact size and lightweight construction make it easy to carry, ensuring that you can access the necessary diagnostic functions without any hassle.
