2、V1.42 dongle and V1.42 software need to be used together.
3、If you want detailed information about 1.42, please contact us.
4、add V850E2-S BYPASS Adapter
Description:
Orange5 V1.42 programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers’ requirements to read/write algorithms.
NOTE: Orange5 cannot work on Win10 and Win11, requires Win7!!!
Highlights:
Software Version:V1.42, orange 5 full function. Activate full Authorizations
Language:English
Systems:WIN7 (32bit and 64 bit)
it can do ECU Programmer, Key Programmer, km correction, immo pin, srs reset

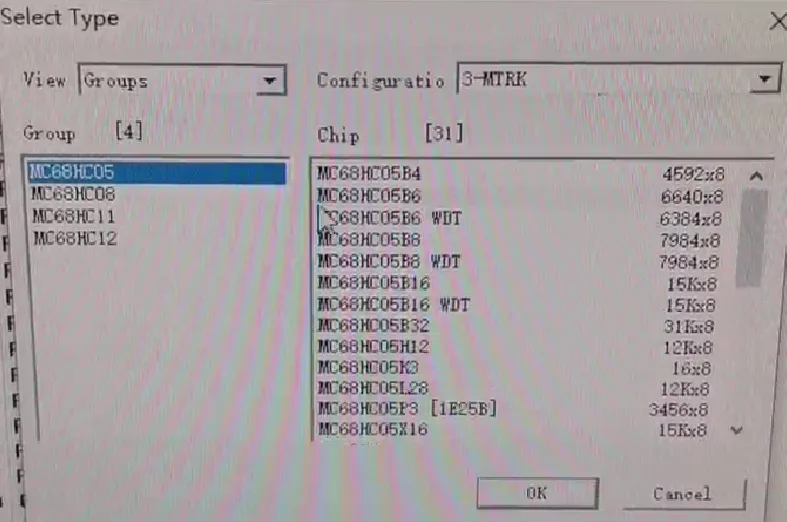

V1.38 and V1.42 both supports MTRK licenses
but need depends on details chips model as reference and test in real operation.
![](https://ae01.alicdn.com/kf/S7dfbd6a4ff1341cb83efcdd1ebaff4d9o.png)
2024 Year New Released V1.42 With USB Dongle and V850E2-S BYPASS adapter
Authorization: MTRK TMS
SN: 0503-2007-0082-BF9E-F8C5-7C3D-6DD9-5C38
Below are V1.42 supports list:
Orange5 ONLY connect via USB power supply 5V voltage. It can not connect external power supply via 12V ,otherwise it will burn, always shows corrupt and kill the board. And Please do not update .
Description:
Orange 5 programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers’ requirements to read/write algorithms.
Please Pay Attention:
The default software version please never try to use higher version or update online,
or device will get locked.
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0…5.0V ), programming voltage (2.0…21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0…5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0…5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
– Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm – Terminal program for work with COM ports.
Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
“Echo” mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn’t need to be installed
Supports Orange5 programmer in emulation mode.
EEPROM:
MicroWire, 4Wire,Adesto, AKM,Altera, Amic, Atmel, BOSCH, Catalyst, Chingis, Dallas/Maxim,
EON, ESMT, EXEL, Fairchild, Fujitsu, GI, GigaDevice, Grundig, HOLTEK,Hynix,ITT,KHIC,
Macronix, MicroChip, Micron, Mitsubishi, Motorola, NEC, NSC, Numonyx,OKI, PCT, Philips,
Pioneer, PMC, Ramtron, Rohm,Samsung,Seiko,Siemens,Sony,Spansion,SST,ST, Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,
MediaTek,
MicroChip,Nordic,NSC,Philips,Renesas,Samsung,SiLabs,ST,TI,Motorola,Freescale,MC68HC11,
MC68HC12
